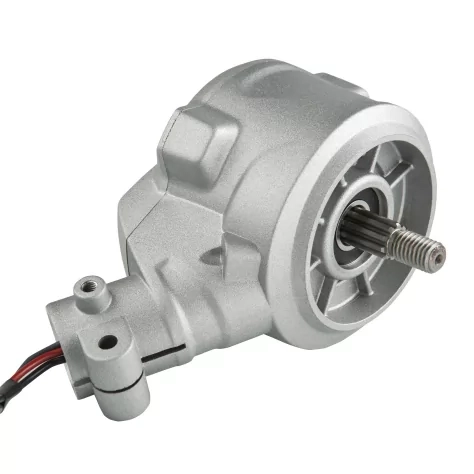

731 inner runner motor
≤ 2 Nm, ≤ 18.000 rpm
The electronically commutated (EC) series 731 motors are designed to be used in battery-driven applications, available in voltages between 12 V and 48 V. In addition to its high efficiency and very low power-to-weight ratio, the EC technology used also enables an exceptionally long lifetime.
The motor is characterised by open construction, which means that it can also be used wherever the impact of the environmental can be harmful. It also provides a very compact design. A wide range of stack heights are available – from 13 mm to 40 mm – which allows flexibility according to customer requirements and installation in end appliances.
The 730 family of EC motors is designed for a power range of 500 to 2,000 W, and the electronics ensure precise regulation and rapid adjustment to various usage requirements.
Nominal power | 500–2,000 W |
Nominal speed | 5,000–18,000 rpm |
Nominal torque | 0.4–2 Nm |
Nominal DC voltage | 24 V/36 V/48 V |
The sale of these motors is subject to certain limitations, so we kindly ask you to contact the head of our sales range.
We offer innovative development solutions tailored to your preferences.
Send InquiryAdvantages
- Good characteristics of motors
- Highly automated production
- High power in relation to weight
- Robust and resistant design
- Long lifetime
- Optionally open or closed motor
- Very low vibration level
Applications
- Chainsaws
- Trimmers
- Leaf blowers
- Hedge clippers
- Lawn mowers
- Secateurs
- Olive shakers
- Concrete cutters
- Metal cutters
- Circular saws
- Angle grinders
- Mulchers
