Product Series

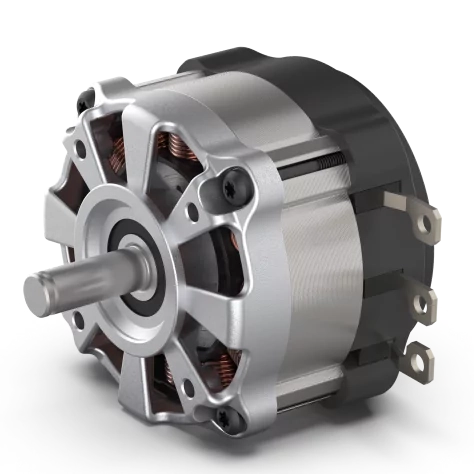

740 high power inner runner

≤ 10 Nm, ≤ 8.000 rpm

The electronically commutated (EC) series 740 motors are designed to be used in battery-driven applications, available in voltages between 12 V and 72 V. These motors are among the most powerful motors in Domel’s range for battery-driven applications. In addition to its high efficiency and excellent power-to-weight ratio, the EC technology used also enables an exceptionally long lifetime.

Domel has responded quickly to market demand and developed a new family of EC motors with a diameter of 90 mm. A wide range of stack heights are available – from 10 mm to 40 mm – which allows flexibility according to customer requirements and installation in end appliances. The motor is highly efficient, which is particularly important for the end user, as it allows for significantly longer autonomy of use. The 740 family of EC motors is designed for a power range of 500 to 5,000 W, and the electronics ensure precise regulation and rapid adjustment to various usage requirements. The motor has a modular design and can be used in various applications.



Nominal shaft power up to 5,000 W
Nominal speed 1,000–10,000 rpm
Nominal torque up to 5 Nm
Nominal DC voltage up to 72 V

We offer innovative development solutions tailored to your preferences.

Send Inquiry
Advantages
  • Low weight
  • High efficiency – up to 93%
  • Open motor for forced cooling (closed motor is also available)
  • Cost-optimised technology
  • Design adapted to customer needs due to a flexible production line
  • Inner rotor type
  • Stator diameter: Ø90 mm
  • Adaptable to various applications (several versions of the motor are available)
Applications
  • Chainsaws
  • Trimmers
  • Combination trimmers
  • Leaf blowers
  • Hedge trimmers
  • Lawn mowers
  • Secateurs
  • Olive shakers
  • Pole pruners
  • Concrete cutters
  • Metal cutters
  • Circular saws
  • Angle grinders
  • Snow blowers
